Pairs XL
Pairs XL

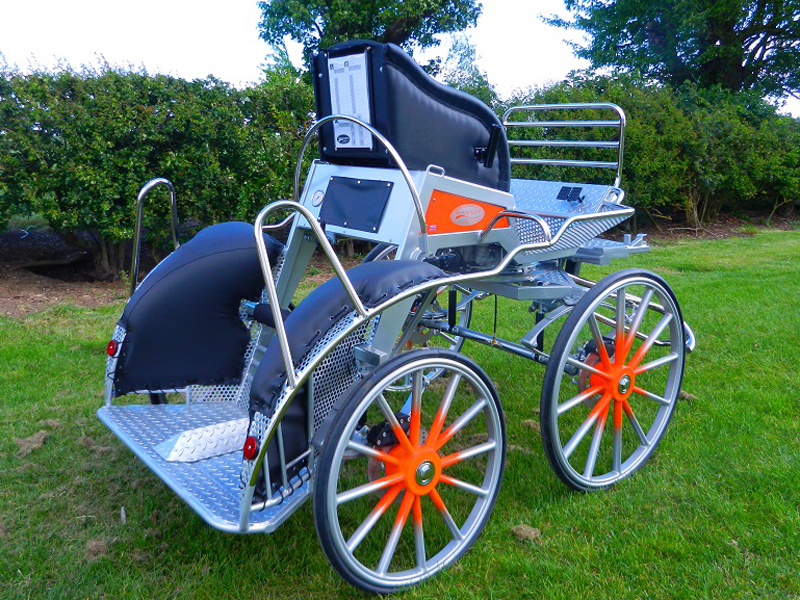

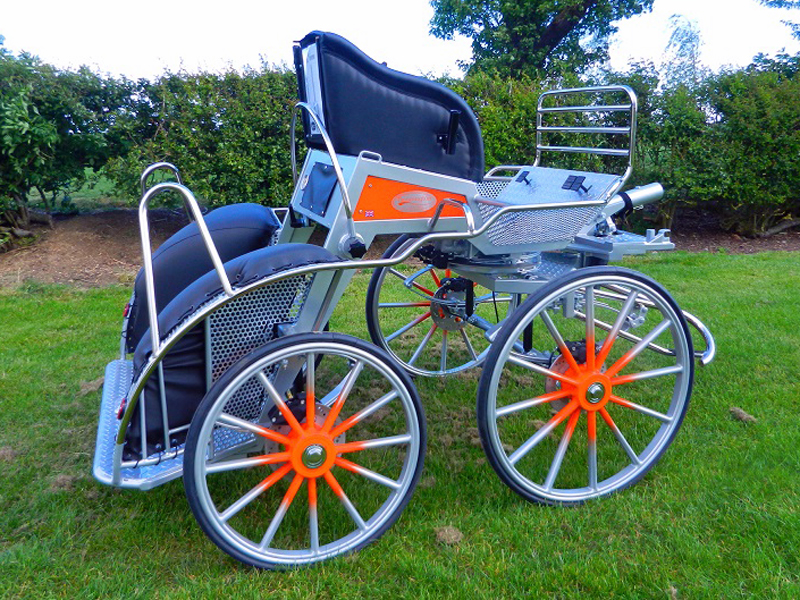

The Bennington Pairs XL is a specialised carriage, designed to maximise performance during marathon driving. Successfully used by many International pairs drivers, the Bennington Pairs XL offers exceptional performance, stability and comfort, plus the exceptional Bennington build quality. If required, the optional "Dual Purpose" pack enables the Pairs XL to be used for all three phases of driving trials.
Use
Marathon pairs driving in horse driving trials
With the optional "dual purpose" pack fitted, all three phases of driving trials can be entered
Key Features
Stainless steel side rails, grooms handles and nudge bars (Note: some images show without stainless tube work incorporated. Prices on request)
Delayed steering
Front and rear dampers
Rear wheel steering
Adjustable grooms handle, powder coated
Pole
Sprung aluminium pole easily adjustable for height. Padded pole and delayed steering housing for added protection for the horses. Telescopic metal pair end, powder coated black. Swingle trees fitted with loops or roller bolts.
Brakes
Rear disc brakes
Wheels
Aluminium wheels fitted with solid rubber tyres, running on taper roller bearings and oil seals. Chrome hub caps fitted on the horse size XL. Wheels cambered for added stability.
Finish
Powder coated for a quality and durable finish in a wide range of colours
Turntable
Ball bearing
Suspension
Parabolic elliptic springs, front and rear dampers
Seat

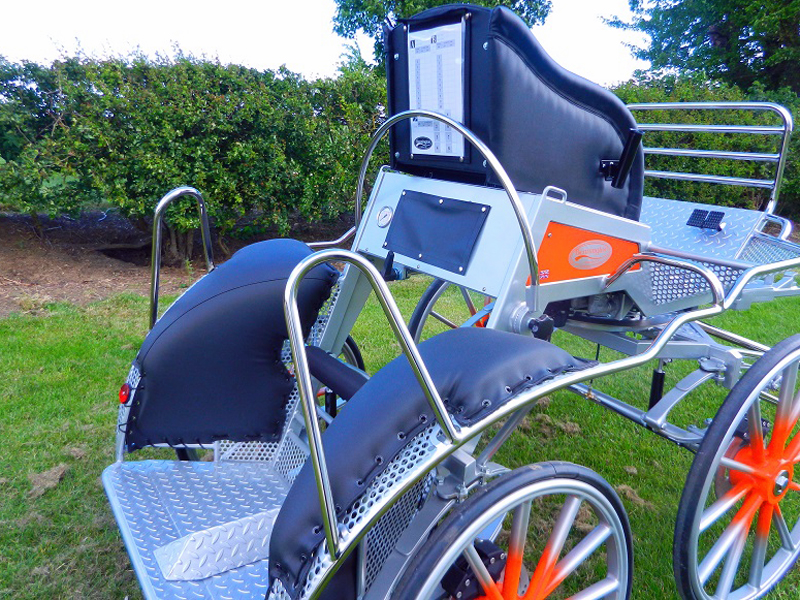

Composite black single seat fitted on seat slides. Note width of seat approximately 15" at the back and 17" at the front. Removable wedge and back cushion. Black vinyl upholstery. Steel tube whip holder included.
Prices
Prices below include V.A.T @ 20% and exclude delivery. Delivery prices are available on request.The above information/specification may be altered at any time without prior notice.
Size range
Wheel dia. front | Wheel dia. rear | Springs | Approx. weight | Track width | |
---|---|---|---|---|---|
13 - 14.2hh / 132 - 147 cms | 28" / 71 cms | 25" / 64 cms | Elliptic springs, front & rear dampers | 225 kg / 495 lb | 125 cms |
15 - 15.2hh / 152 - 157 cms | 30" / 84 cms | 25" / 64 cms | Elliptic springs, front & rear dampers | 360 kg / 792 lb | 125 cms |
16 - 16.2hh / 162 - 168 cms | 33" / 84 cms | 28" / 71 cms | Elliptic springs, front & rear dampers | 390 kg / 858 lb | 125 cms |
